Steel beams and industrial tubes are critical components in construction, machinery, and structural applications. Fabricators increasingly rely on CNC punching hole machines to handle these materials efficiently, accurately, and with minimal labor. These machines provide consistent hole placement, clean edges, and high-speed production capabilities that manual methods or traditional drilling cannot match.
This article explores why CNC punching hole machines are the preferred choice for steel beam and tube processing, highlighting their advantages, applications, and workflow improvements.
The Advantages of CNC Punching for Steel Fabrication
CNC punching machines provide significant benefits that make them indispensable for modern fabricators:
● Precision and Accuracy: CNC controls ensure exact hole spacing and alignment, crucial for structural integrity.
● High Production Speed: Automated punching dramatically reduces cycle times compared to manual drilling.
● Consistent Quality: Every hole meets specifications, minimizing scrap and rework.
● Versatility: CNC machines can handle H-beams, C-beams, rectangular tubes, and round pipes without changing setups.
● Reduced Labor Costs: Automation reduces manual handling and monitoring, allowing operators to manage multiple tasks simultaneously.
�� 插入链接
CNC Punching Machine Applications in Steel Beams
H-Beams
● Used in bridges, building frameworks, and heavy structures.
● CNC punching provides clean, precise holes for bolting and assembly.
● High punching force ensures even thick flanges are processed without deformation.

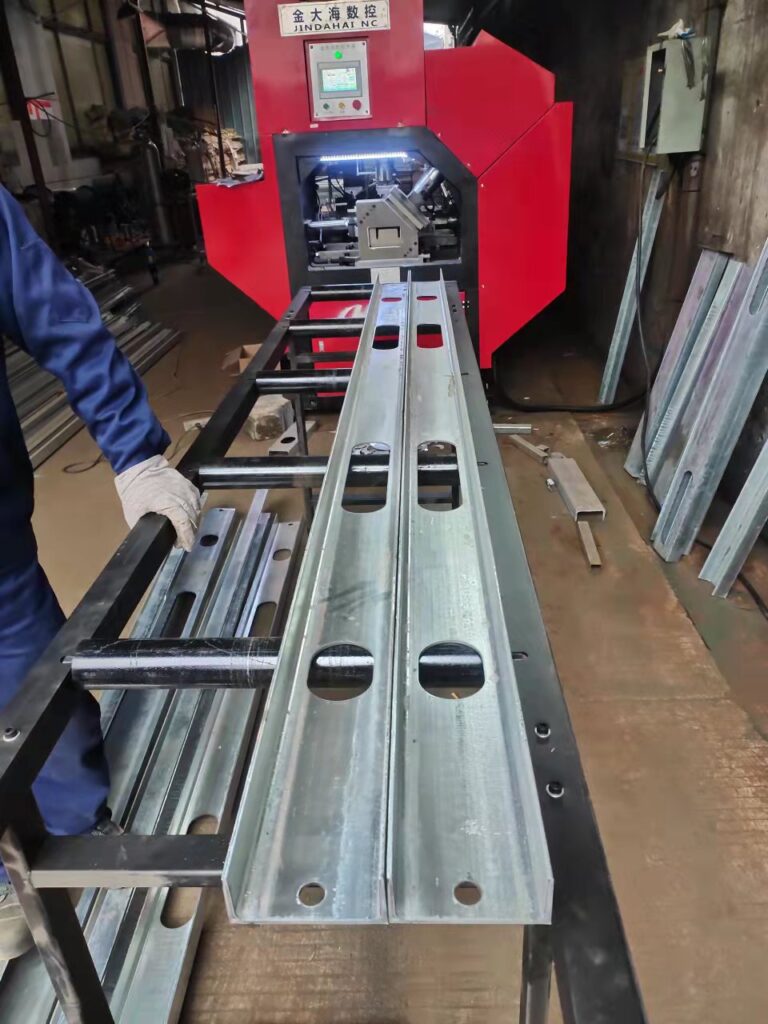

C-Beams
● Common in machinery frames, support structures, and industrial equipment.
● CNC punching machines maintain hole accuracy along the beam length.
● Automated positioning eliminates the need for manual marking.
Angle Steel and Channels
● Multi-angle punching is possible with CNC control.
● Reduces setup time and allows repeatable hole patterns on irregular profiles.
CNC Punching Applications in Tubes and Pipes
Round Tubes
● CNC machines punch holes along curved surfaces without deforming the tube.
● Suitable for stainless steel, thin-wall, and thick-wall tubes.
Rectangular and Square Tubes
● High-precision punching ensures accurate bolt or connection holes.
● Supports industrial equipment, construction frames, and fabrication lines.
Benefits for Tube Fabrication
● Smooth edges and minimal burrs

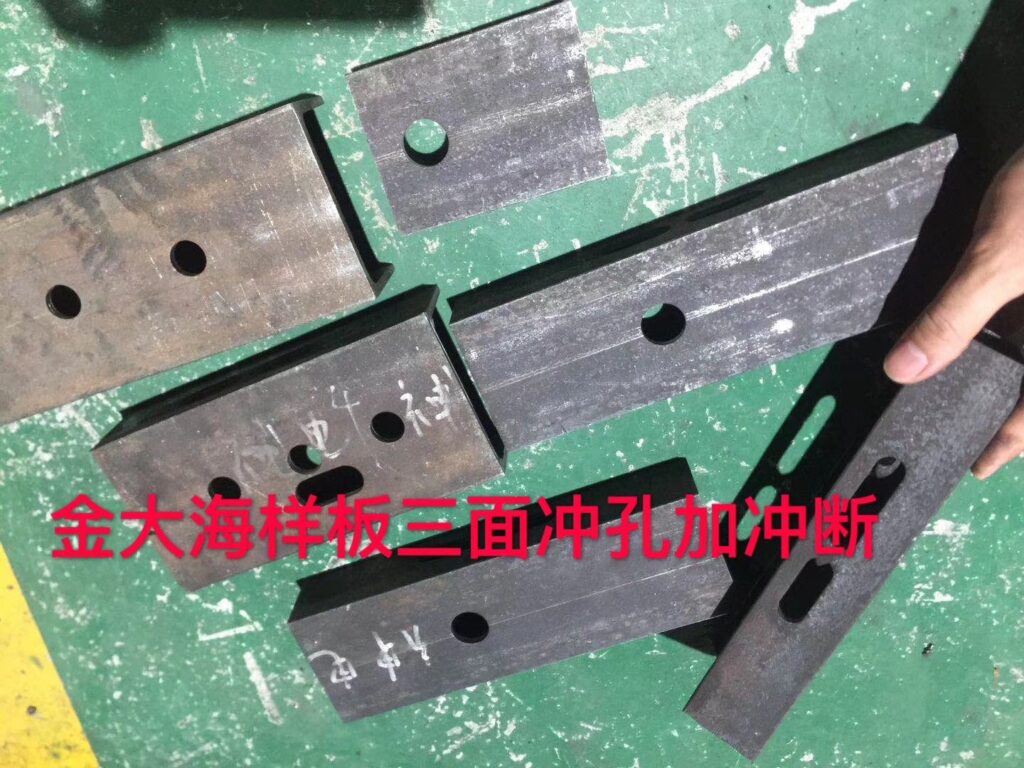

● Multi-sided punching without repositioning
● Reduced material waste
Why Fabricators Prefer CNC Punching Machines
- Automation and Efficiency: Continuous production without manual marking or drilling.
- High Accuracy: CNC guidance ensures precise holes even in long beams or curved tubing.
- Versatility: Ability to switch between beams and tubes quickly, handling various thicknesses.
- Safety: Reduced manual labor lowers the risk of injury.
- Cost-Effectiveness: Faster production, less material waste, and fewer errors lower overall costs.
These advantages make CNC punching machines a smart investment for any fabrication shop aiming to improve productivity and quality.
How to Optimize CNC Punching for Steel Beams and Tubes
● Ensure proper clamping to prevent vibration during punching
● Use high-quality dies and punches for clean edges
● Set correct punch force based on material thickness
● Regularly maintain CNC controls, tooling, and lubrication
● Use automated positioning and feed systems to reduce manual interventions
Following these best practices ensures optimal performance and prolongs machine lifespan.
CNC punching hole machines are now the preferred solution for steel beam and tube processing. They offer unmatched precision, speed, and versatility, making them ideal for heavy-duty fabrication, industrial tubing, and structural steel applications. Fabricators choosing CNC systems benefit from reduced labor, consistent quality, and enhanced productivity—making them a critical investment for modern metalworking operations.
