Project Story: Improving Square Tube Processing in Uzbekistan
In the construction formwork industry, climbing formwork and scaffolding frame systems require strong, accurate, and repeatable steel components. Large square tubes are often used as structural supports, and each tube must be punched with consistent hole patterns to ensure proper assembly and safe installation on construction sites.
In Uzbekistan, a manufacturer of construction formwork and intelligent climbing frame systems needed a more efficient way to process heavy square tubes. The customer’s main requirement was clear: large square tubes needed punching on four sides, and the process had to be more efficient, safer, and less dependent on manual labor.
This case study explains how the company upgraded its production workflow by adopting a CNC square tube punching machine designed for heavy-duty construction formwork components.
Background: Square Tubes in Climbing Formwork Systems
The customer operates in the construction formwork industry, producing formwork structures and intelligent climbing frame systems. These products are widely used in high-rise building projects, where structural strength and dimensional consistency are critical.
Large square tubes are important components in these systems. They are used as vertical supports, frame members, and connection structures. For this application, the tubes require oval holes on multiple sides, allowing them to connect with other parts during installation.
Because these components are used in construction safety systems, punching accuracy and repeatability are essential.
Challenges Before Equipment Upgrade
Before introducing the new solution, the customer relied on traditional processing methods. As production demand increased, several challenges became more obvious.
Manual operation required more workers and increased labor costs.
Processing large square tubes was slow and physically demanding.
Punching on four sides required repeated positioning, which affected efficiency.
Hole alignment was difficult to keep consistent across batches.
Operators needed to work close to the punching area, increasing safety risks.
In a competitive market, these issues made it difficult to maintain stable output and control production costs.
Defining the Production Requirements
After reviewing the production process, the customer defined several key requirements for the new equipment.
The machine needed to process large square tubes used in climbing formwork frames.
Four-side punching had to be completed with stable positioning.
The system needed to reduce manual handling and improve safety.
The machine had to support long material feeding for continuous production.
The solution needed to improve efficiency while maintaining consistent punching quality.
The goal was not just to buy a punching machine, but to build a more reliable production process for formwork frame manufacturing.

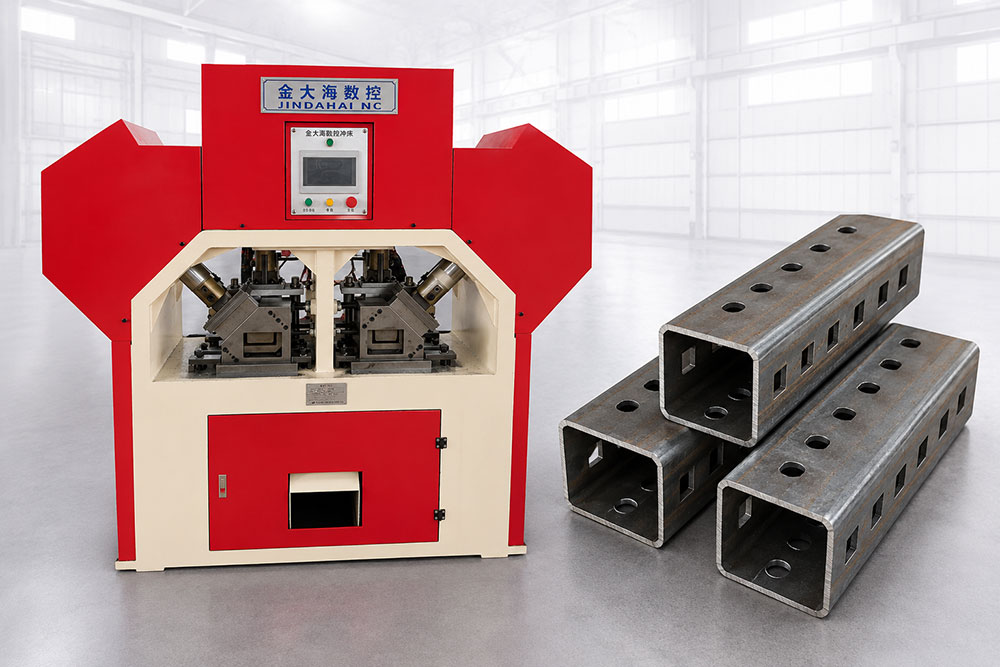

The Proposed Solution: Heavy-Duty CNC Punching System
Based on these requirements, we provided a heavy-duty CNC punching solution for square tube processing.
The machine was configured for large tube punching, with a reinforced structure, stable feeding system, and hydraulic punching capability suitable for heavy construction materials. Instead of focusing on detailed technical specifications, the solution emphasizes strength, stability, and practical production efficiency.
Key features include:
Large square tube processing capability
Four-side punching support for structural frame components
CNC-controlled positioning for consistent hole alignment
Reinforced machine structure for stable long-term operation
Feeding system designed for long materials
This configuration allows the customer to process formwork frame tubes more efficiently and with fewer manual steps.
Streamlined Workflow for Four-Side Punching
In daily production, square tubes are placed onto the feeding system and positioned according to the preset program.
The machine completes punching operations on multiple sides of the tube, reducing the need for repeated manual repositioning. This helps improve processing efficiency and ensures that the hole positions remain consistent across different batches.
For climbing formwork and scaffolding frame components, this consistency is important because each tube must match other structural parts during assembly.
Why This Solution Fits Construction Formwork Manufacturing
Construction formwork manufacturers often process heavy steel materials, and their production requirements are different from light metal fabrication.
This CNC punching solution is suitable for the industry because it helps:
Reduce manual labor in heavy tube handling
Improve punching consistency for large square tubes
Shorten processing time for repeated hole patterns
Reduce operator exposure to high-risk punching areas
Support batch production for formwork frame components
For manufacturers producing climbing frames, scaffolding frames, or heavy support structures, stable and repeatable punching directly improves assembly efficiency.
Production Advantages for the Customer’s Industry
Compared with traditional processing methods, the new solution offers several advantages for formwork and climbing frame production.
Production efficiency improves because multiple sides of the tube can be processed with less manual repositioning.
Labor cost is reduced because operators mainly focus on loading, monitoring, and material flow instead of repeated manual punching.
Safety is improved through CNC-controlled operation and better human-machine separation.
Product consistency improves because punching positions are controlled by the system rather than manual marking.
Long-term production stability improves because the machine structure is designed for heavy-duty operation.
These advantages help the customer build a more scalable production workflow for construction formwork components.
Supporting Scalable Climbing Formwork Production
As construction projects become larger and more standardized, formwork manufacturers need equipment that can support both production capacity and processing accuracy.
By adopting a CNC square tube punching solution, the customer established a more efficient process for producing large formwork frame components. The machine provides a practical balance between automation, strength, and ease of operation.
This solution also helps the factory prepare for future production expansion, as similar tube sizes and hole patterns can be managed through program adjustment and tooling configuration.
Conclusion
This project demonstrates how a construction formwork manufacturer in Uzbekistan improved square tube processing through equipment upgrading.
By replacing labor-intensive methods with a heavy-duty CNC punching system, the customer gained a more efficient, safer, and more consistent production process for climbing formwork frame components.
For manufacturers working with large square tubes in construction formwork, scaffolding, or climbing frame systems, this type of CNC punching solution provides a practical path toward higher productivity and lower long-term labor costs.
